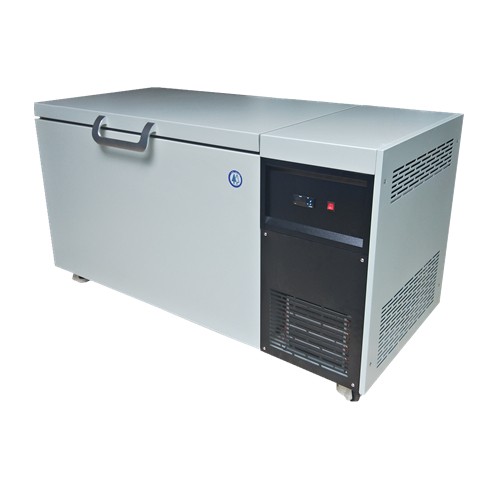

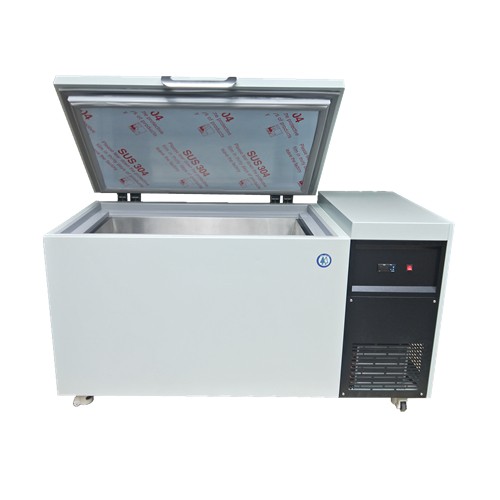

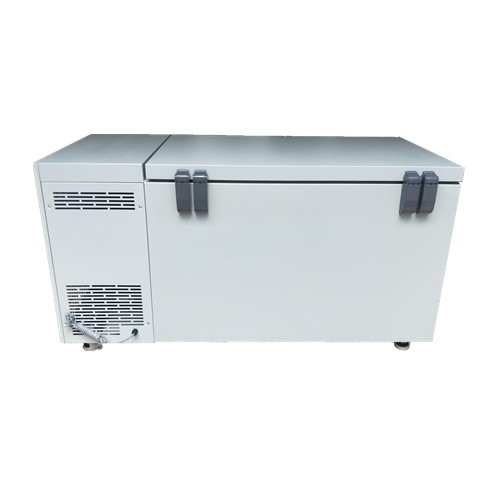

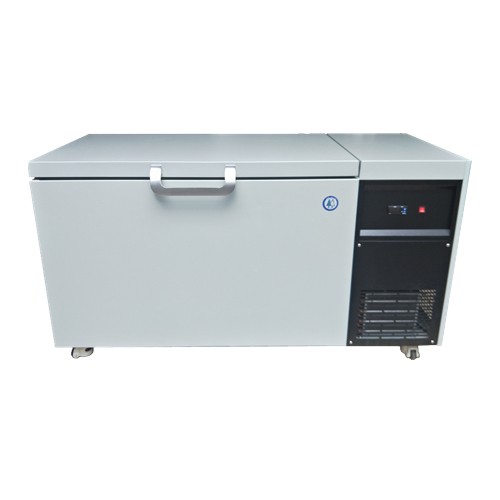

-105°C 臥式超低溫保存箱 cryogenic chest freezer
產品型號:DW-105W105/200/300
產品型號:DW-105W105/200/300
應用范圍:
本產品適用于機械制造、造船、軍工、航天航空等領域金屬零件的深冷處理;用于科研院所實驗室、
生物制藥、農牧科技等領域生物材料、樣品及樣本的深冷凍存; 也可用于日料餐飲行業金槍魚等高檔海
鮮的深冷保鮮;
產品特點:
采用自主超低溫專利技術(專利號:ZL 2017 2 0104724.X 專利類型:實用新型),性能優異(制冷
強勁、降溫快、箱溫低)、高效省電;
主要制冷部件采用國際大品牌,銅管蒸發器、食品級304不銹鋼內膽,可靠耐用,確保存放的樣品、食品的安全;
數字溫度顯示,箱內溫度一目了然;高低溫及傳感器故障報警,及時掌握異常情況;
雙門封、厚發泡層結構,保溫節能效果好;
承重?,斈_輪,移動方便自如;
無氟混合工質及發泡劑,綠色環保。
Applications:
The freezer is used for cryogenic treatment of metal parts in the industries of machine manufacturing, ship building, military, aerospace etc. ; for cryogenic storage of biological materials, samples and specimens at laboratory in the fields of institutes & universities, biotech, pharmaceuticals, agriculture & animal husbandry; also be used for fresh storage of deep frozen tuna etc. high-end seafood;
Features:
Unique ultra low temperature patent technology, superior performance (strong refrigeration, fast cooling and lower temperature), high efficiency and lower energy consumption;

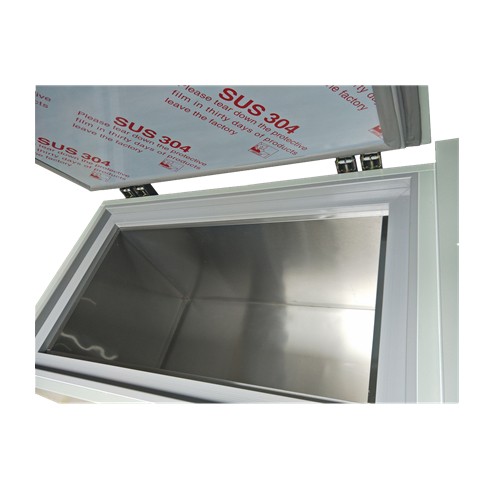

Major components such as compressor, thermostat and fan motor are world famous brands, copper tube evaporator and SUS 304 stainless steel interior, reliable and durable, ensure safety of stored samples and foods;
Digital temperature display, the temperature inside freezer is easy to see; High/low temperature and sensor fault alarms, to know abnormal conditions in time;
Double gaskets and thick foam insulation, good thermal insulation and energy saving;
Fit with foot master heavy duty casters, easy moving;
CFC free mixed refrigerants & foaming agent, green and environmentally friendly.
技術參數 Technical data:
型號 Model | DW-105W105 | DW-105W200 | DW-105W300 |
柜體類型 Type of cabinet | 臥式 Horizontal | 臥式 Horizontal | 臥式 Horizontal |
有效容積 Capacity | 105 升 liters | 200 升 liters | 300 升 liters |
溫度范圍 Temperature range | -60°C to -105°C, 可調adjustable | -60°C to -105°C, 可調 adjustable | -60°C to -105°C, 可調 adjustable |
氣候類型 Climate type | N | N | N |
電源 Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
輸入功率 Rated input | 700W | 750W | 850W |
防觸電保護等級 Protective class | I/B | I/B | I/B |
產品尺寸 Unit dimension | 1140*760*930mm | 1390*760*930mm | 1690*760*930mm |
內膽尺寸 Inner dimension | 410*460*550mm | 710*510*580mm | 1010*510*580mm |
毛重 Net weight | 100 kg | 150 kg | 180 kg |
