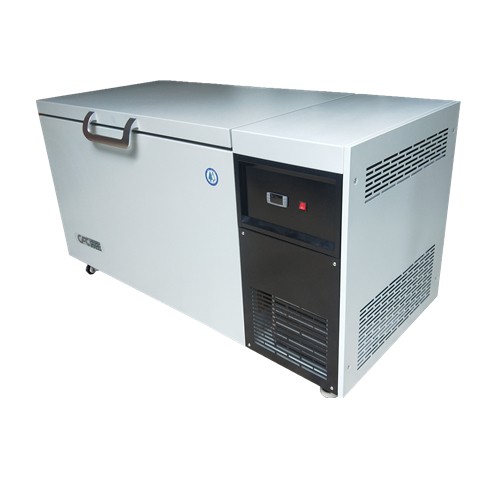

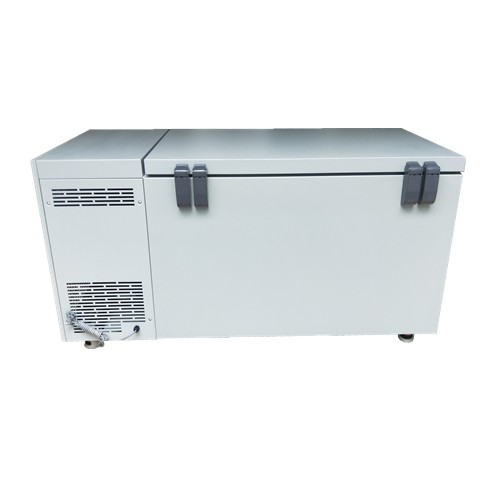

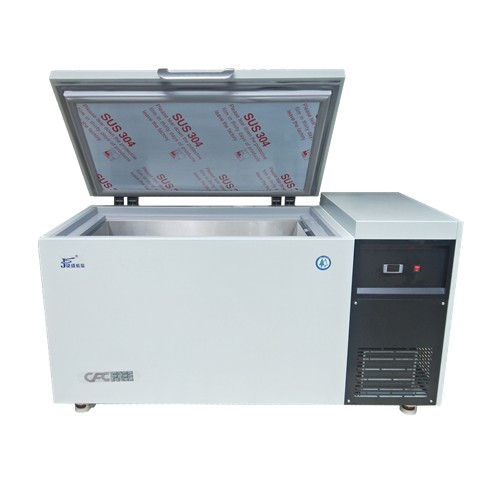

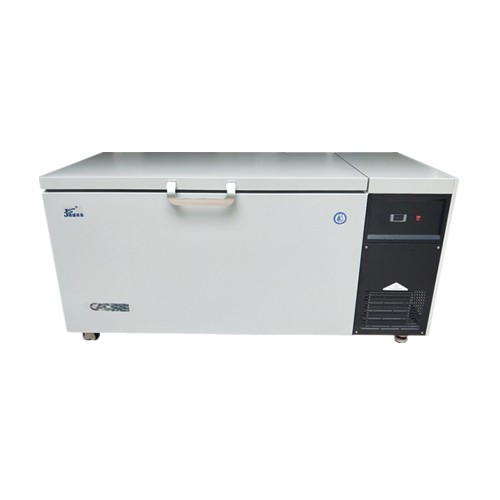

-86°C 臥式超低溫保存箱ultra low temperature chest freezer
產品型號:DW-86W105/200/300/480
產品型號:DW-86W105/200/300/480
應用范圍:
本產品適用于生物材料、樣品及樣本的超低溫凍存; 可用于特殊材料、電子器件及金屬零件的低溫試驗
和深冷處理; 也可用于金槍魚等高檔海鮮的超冷凍保鮮;
產品特點:
采用自主超低溫專利技術(專利號:ZL 2017 2 0104724.X 專利類型:實用新型),性能優異(制冷
強勁、降溫快、終溫低)、高效省電;

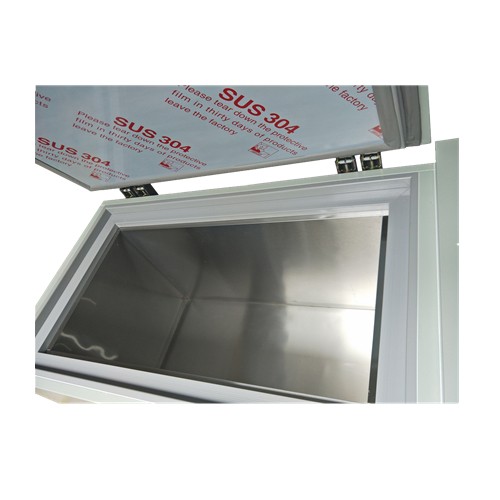

主要制冷部件采用國際大品牌,銅管蒸發器、食品級304不銹鋼內膽,可靠耐用,確保存放食品的安全;
數字溫度顯示,箱內溫度一目了然;高低溫及傳感器故障報警,及時掌握異常情況;
雙門封、厚發泡層結構,保溫節能效果好;
承重?,斈_輪,移動方便自如;
無氟混合工質及發泡劑,綠色環保。
Applications:
The freezer is designed for long term storage of biological materials, samples and specimens at ultra low temperature and used for low temperature test and cryogenic treatment for special materials, electronic components & devices and metals components; the freezer can be also used for fresh storage of super frozen tuna etc. high-end seafood.
Features:
Unique ultra low temperature patent technology, superior performance (strong refrigeration, fast cooling and lower temperature), high efficiency and lower energy consumption;
Major components such as compressor, thermostat and fan motor are world famous brands, copper tube evaporator and SUS 304 stainless steel interior, reliable and durable, ensure safety of stored samples;
Digital temperature display, the temperature inside freezer is easy to see; High/low temperature and sensor fault alarms, to know abnormal conditions in time;
Double gaskets and thick foam insulation, good thermal insulation and energy saving;
Fit with foot master heavy duty casters, easy moving;
CFC free mixed refrigerants & foaming agent, green and environmentally friendly.
技術參數 Technical data:
型號 Model | DW-86W105 | DW-86W200 | DW-86W300 | DW-86W480 |
柜體類型 Type of cabinet | 臥式 Horizontal | 臥式 Horizontal | 臥式 Horizontal | 臥式 Horizontal |
有效容積 Capacity | 105 升 liters | 200 升 liters | 300 升 liters | 480 升 liters |
溫度范圍 Temperature range | -40°C to -86°C, 可調 adjustable | -40°C to -86°C, 可調 adjustable | -40°C to -86°C, 可調 adjustable | -40°C to -86°C, 可調 adjustable |
氣候類型 Climate type | N | N | N | N |
電源 Power supply | 220V/50Hz 115V/60Hz | 220V/50Hz 115V/60Hz | 220V/50Hz 115V/60Hz | 220V/50Hz 115V/60Hz |
輸入功率 Rated input | 450W | 500W | 600W | 700W |
防觸電保護等級 Protective class | I/B | I/B | I/B | I/B |
產品尺寸 Unit dimension | 1140*760*930mm | 1390*760*930mm | 1690*760*930mm | 1990*860*975mm |
內膽尺寸 Inner dimension | 410*510*550mm | 710*510*580mm | 1010*510*580mm | 1300*600*600mm |
凈重Net weight | 100 kg | 160kg | 180 kg | 240 kg |
